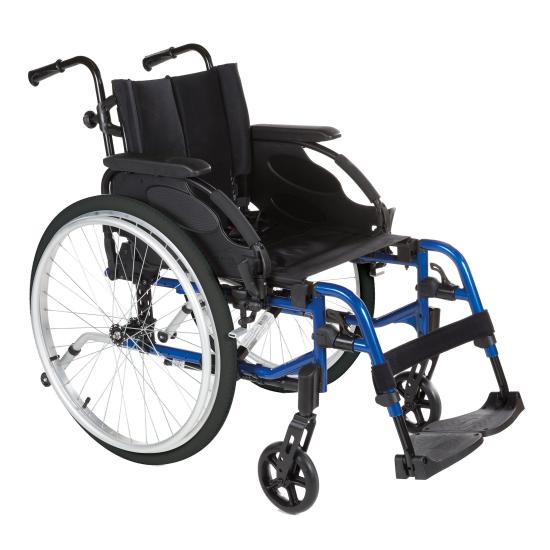

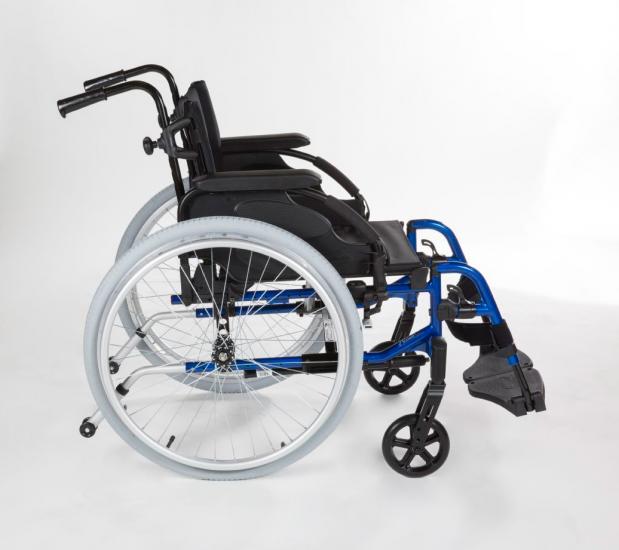

Invacare Action 3 NG Active Wheelchair

Invacare Action 3 NG Manual Wheelchair – Lightweight, Adjustable & Customisable Mobility

The Invacare Action 3 NG is a high-performance manual wheelchair designed for both indoor and outdoor use, offering excellent manoeuvrability, comfort, and easy transport. Built with a lightweight aluminium frame and new ultra-lightweight components, this wheelchair delivers outstanding drive performance while remaining highly portable and foldable for storage or travel.

With multiple rear wheel positions and an easily adjustable seat configuration, the Action 3 NG is perfect for users looking for a dependable, user-friendly wheelchair that can be tailored to their individual needs. Whether you're navigating tight indoor spaces or moving across outdoor terrain, the Action 3 NG adapts effortlessly.

Key Features:

• Lightweight & foldable frame – easy to store and transport
• Excellent drive performance – smooth, stable ride indoors or outdoors
• Highly customisable – choose from 8 vibrant frame colours and 6 pre-configured models
• Modern aesthetics – now includes black nylon mesh upholstery, and black front and rear wheels as standard
• Multiple rear wheel positions – enhances manoeuvrability and comfort

Configuration Options:

The Invacare Action 3 NG is available in six pre defined configurations to suit different mobility needs:

• Self-Propel: For users with upper body strength who can independently manoeuvre

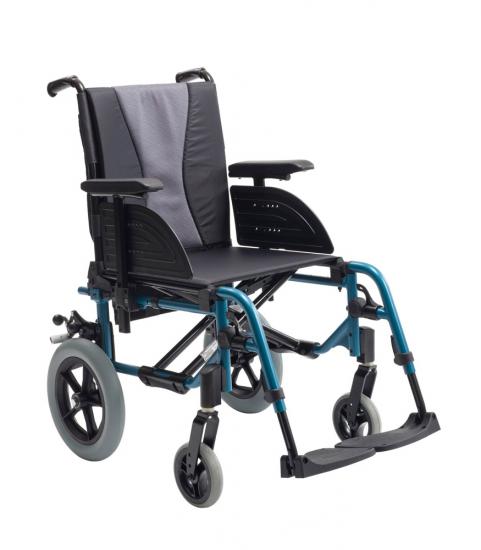

• Transit: For users who require attendant support
• Dual Handrim: Designed for users with limited use of one side of the upper body
• Compact: Ideal for smaller users needing a lower seat height and shorter legrests

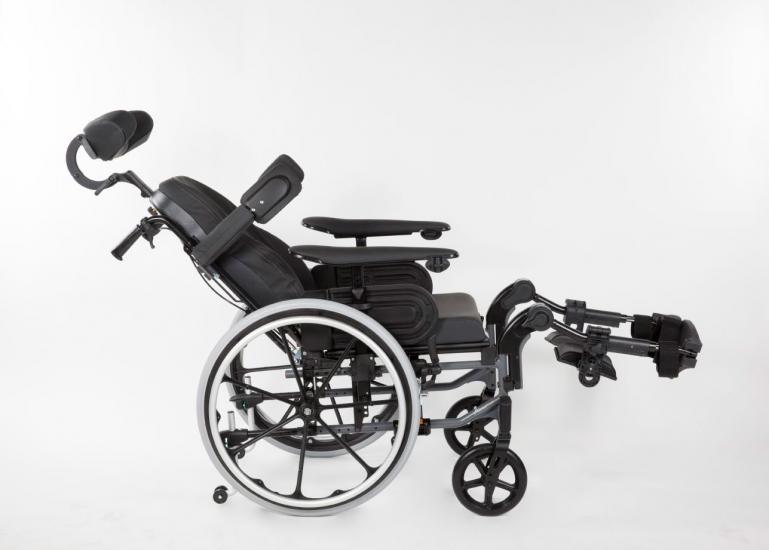

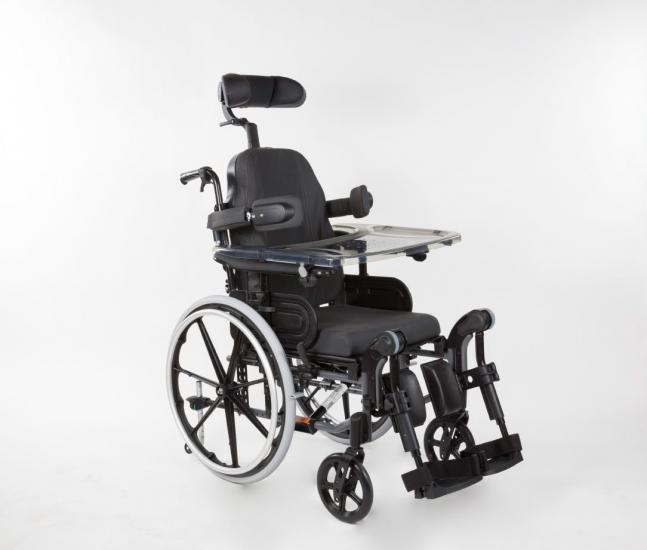

• Comfort: Enhanced supportive seating for long-term use
• Light: Optimised for those needing a lightweight, easy-to-handle wheelchair

Specifications:

• Seat width: 380 / 405 / 430 / 455 / 480 / 505 mm
• Seat depth: Self-propel – 400 / 450 / 500 mm; Transit – 400 / 450 mm
• Seat angle: 0° / 3° / 6°
• Seat height:
• Self-propel: 360 – 510 mm
• Transit: 460 / 485 / 510 mm
• Backrest angle: 0° / 7° / 0–30° / –15° to +15°
• Backrest height:
• Self-propel: 325 – 510 mm
• Transit: 380 – 460 mm
• Front frame angle: 80°, 0–75°, or 90°
• Footrest length: 200–510 mm depending on model
• Armrest height: Adjustable between 170 – 350 mm
• Driving unit width:
• Self-propel: Seat width + 190 mm
• Transit: Seat width + 160 mm
• Total width (folded):
• Self-propel: 295 mm
• Transit: 260 mm
• Total height (folded): 795 – 1510 mm
• Total length:
• Self-propel: 980 – 1105 mm
• Transit: 950 – 1050 mm
• Length without footrests:
• Self-propel: 835 – 960 mm
• Transit: 710 – 910 mm
• Total height:
• Self-propel: 820 – 1050 mm
• Transit: 920 – 1050 mm
• Max user weight: 125 kg
• Turning diameter: 870 mm
• Max safe slope: 7°
• Total weight:
• Self-propel: 13.0 kg
• Transit: 13.5 kg
• Transport weight:
• Self-propel: 7.1 kg
• Transit: 10.3 kg
• Crash tested: Yes

The Invacare Action 3 NG is the perfect blend of lightweight design, modular adjustability and user-focused comfort.
